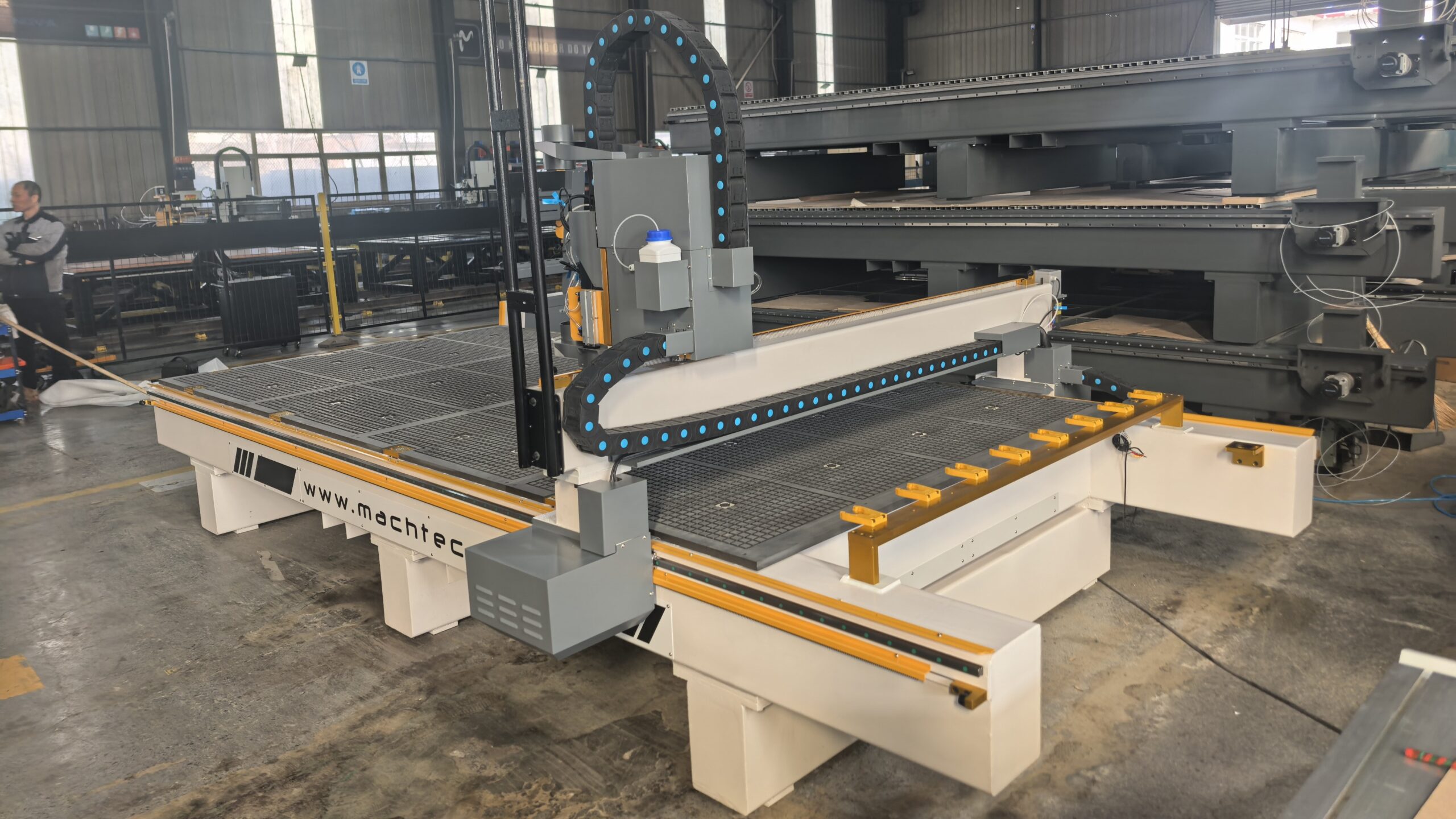

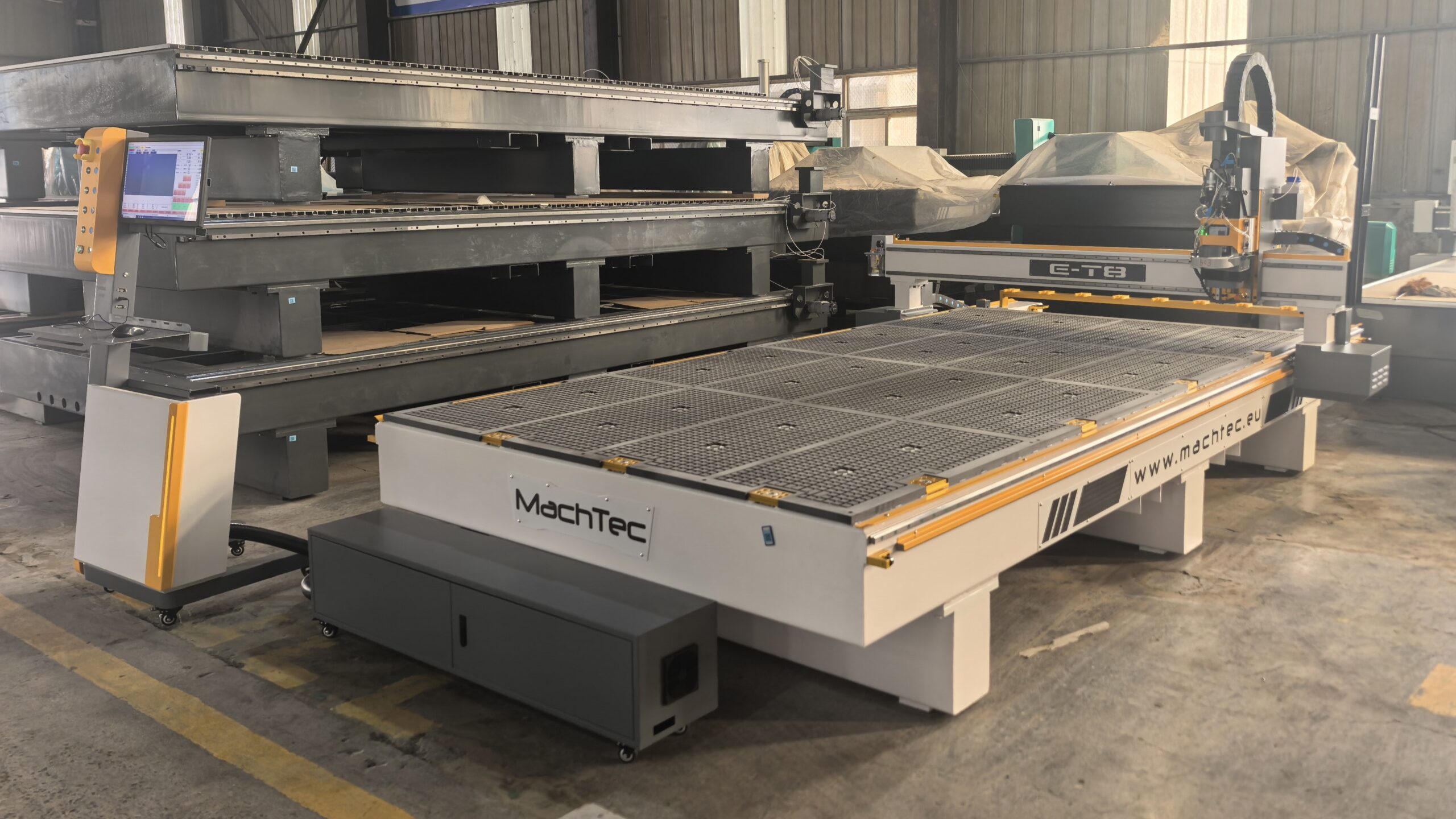

machtec E-T8 ATC ОKC

CNC Router for processing composite, MDF, aluminum, etc. panels
Send an inquiry
Download specifications
_cuva
_cuva
_cuva

Technical specifications

  • Working area: 2000 x 4000 mm

  • Z-axis travel: 200 mm

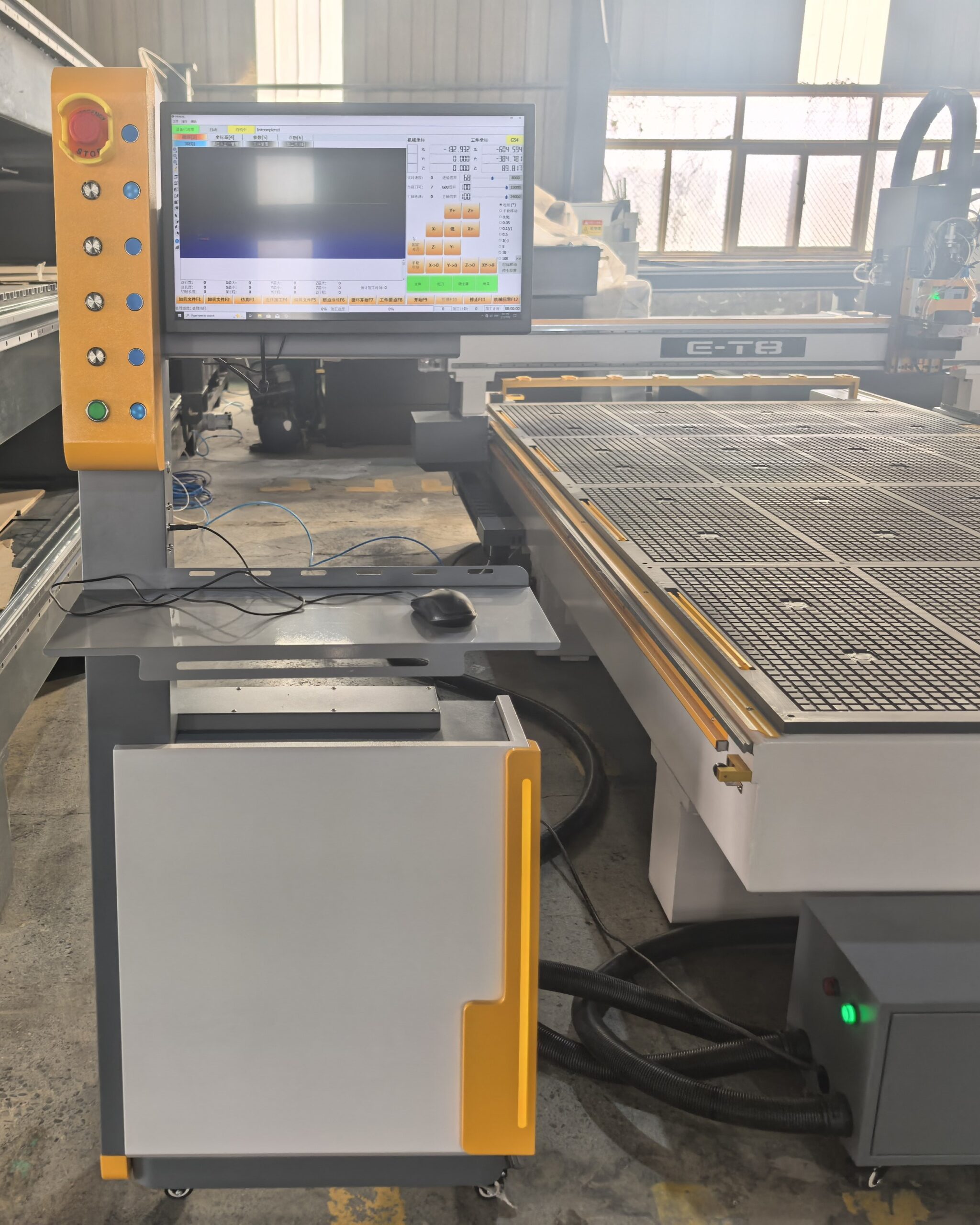

  • Control system: XDW NV-203C computer (PC) system with a 24" monitor

  • Spindle: Olispeed (Italy), 9 kW power, ATC, 24,000 rpm, air-cooled

  • Servo drive: Delta

  • Repeat positioning accuracy: ±0.01 mm

  • Working table: Vacuum table with T-slots

  • Vacuum pump: 7.5 kW, air-cooled

  • Vacuum zones: Table vacuum zones controlled from the control panel

  • Lubrication system: Automatic lubrication system

  • Calibration: Automatic calibration

  • Tool magazine: Automatic Tool Changer (ATC) magazine for 8 tools

  • Operating voltage: 380 V

  • Command language: G-code

  • CCD camera: CCD camera for material scanning

  • Oscillating knife: Oscillating knife for soft materials

  • Dust extraction: 3 kW dust collection system included as standard with the machine
