machtec PL800

Configuration

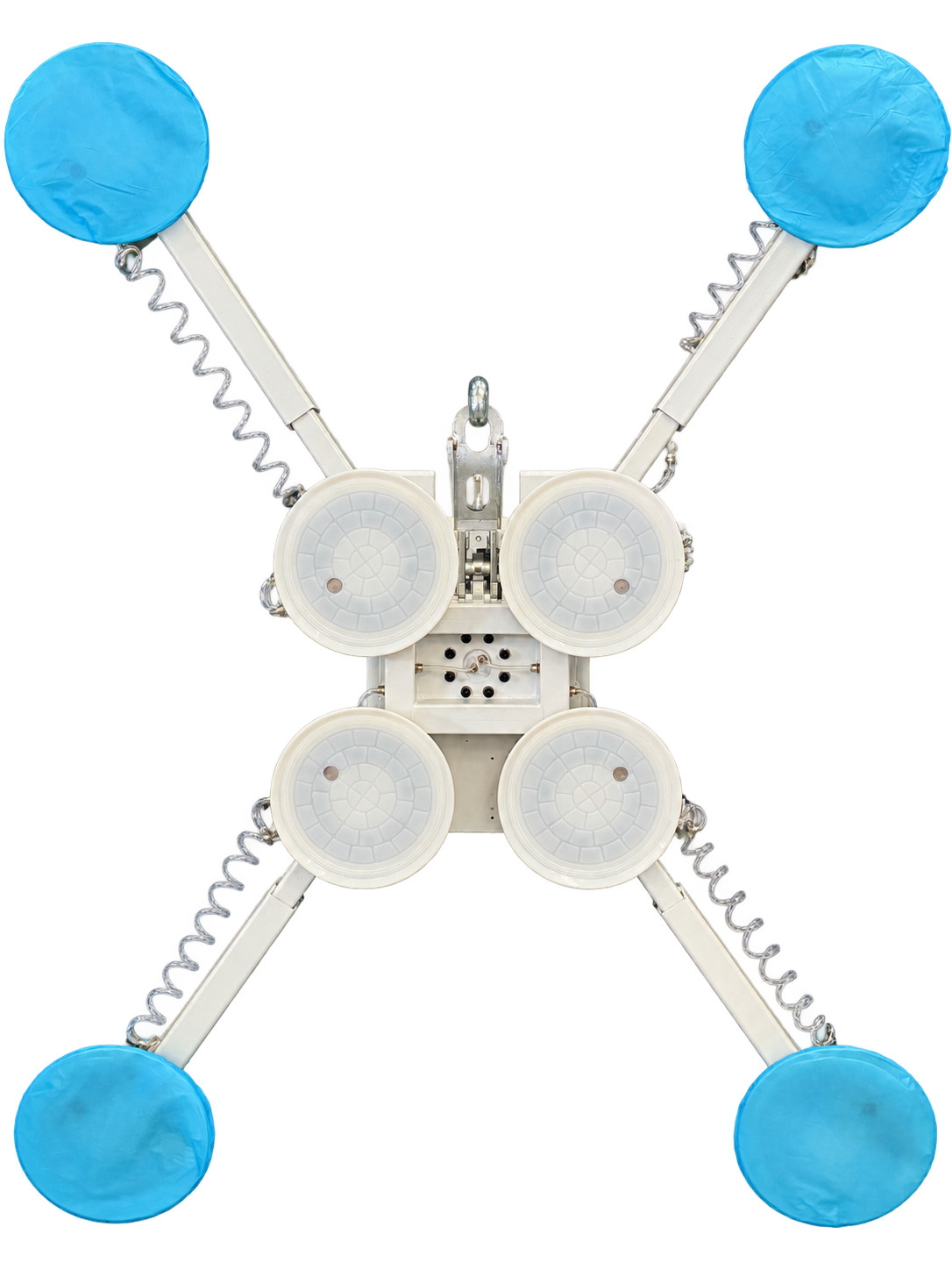

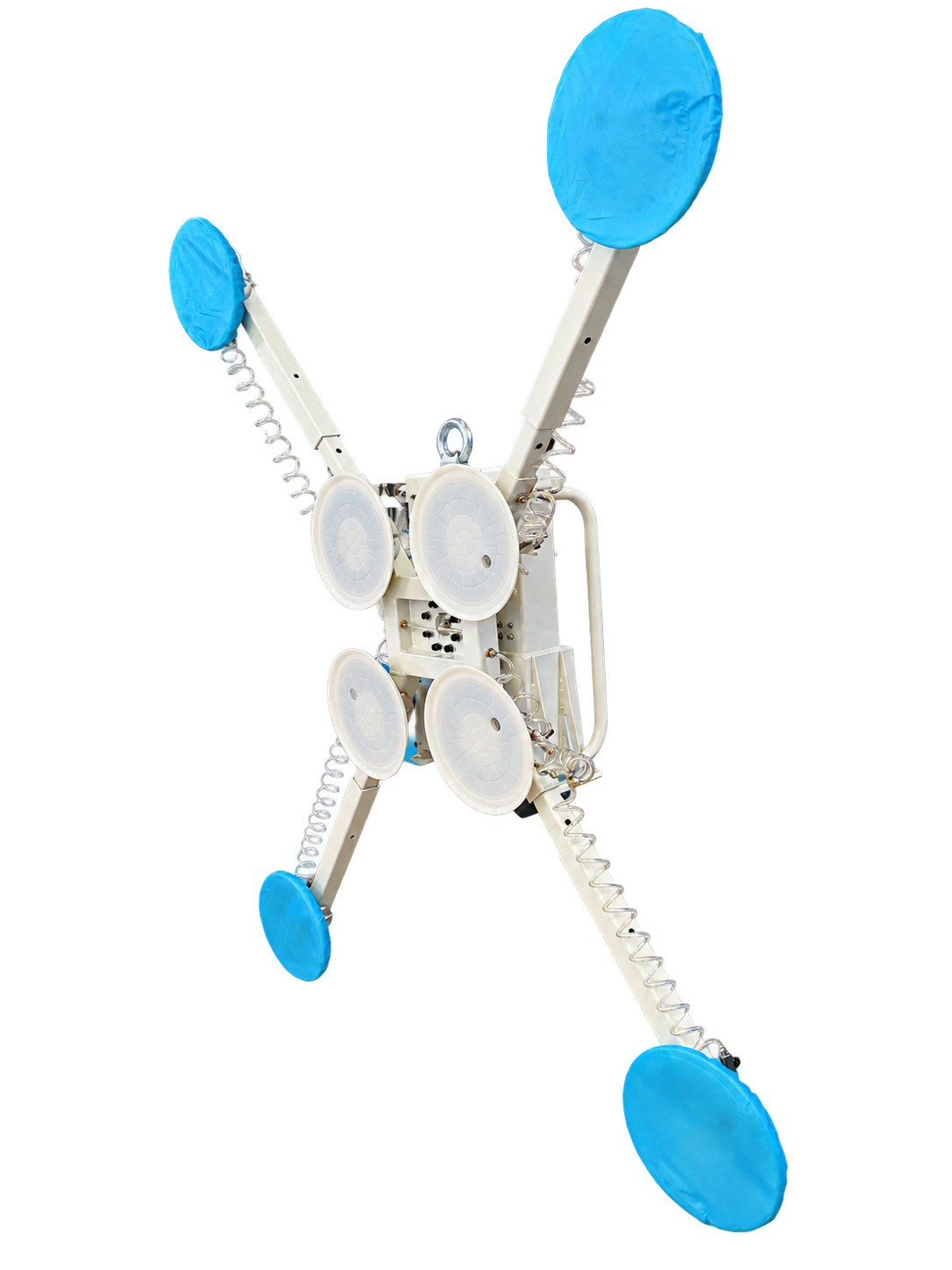

• Standard configuration: 4 pcs. suction pads Ø300 mm

• Expanded configuration: Up to 8 pcs. suction pads Ø300 mm

• Operating vacuum: -60 to -70 kPa

• Safe working load (vertical lifting):

  • 4 suction pads: up to 300 kg

  • 6 suction pads: up to 450 kg

  • 8 suction pads: up to 600 kg

• Safe working load (horizontal lifting):

  • 4 suction pads: up to 400 kg

  • 6 suction pads: up to 600 kg

  • 8 suction pads: up to 800 kg

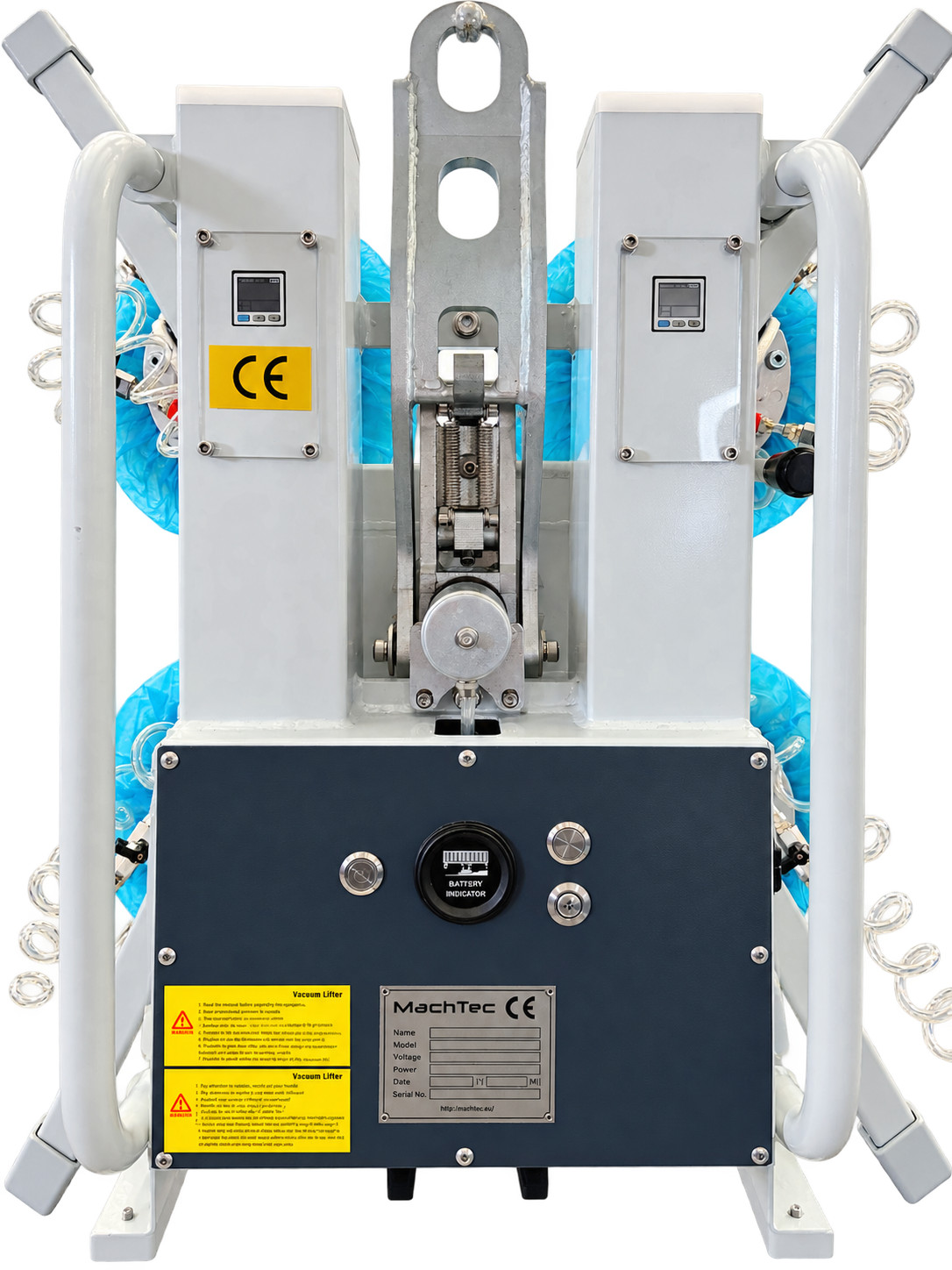

• Two independent vacuum circuits

• Continuous individual control and monitoring of each vacuum circuit

• Visual and audible alarm in case of vacuum drop below the preset safety threshold

• Vacuum control via remote control

• Suitable for working with glass, metal sheets, composite panels, and other non-porous materials

• Flexible suction pad configuration according to workpiece dimensions and geometry

Safe Operation

• The maximum allowable load depends on the size, weight, rigidity, surface condition, and center of gravity of the workpiece

• The load must be evenly distributed among the active suction pads

• The contact surface must be clean, dry, and free from contaminants that could reduce vacuum retention

• The dual vacuum protection system is designed to increase operational safety and early leak detection

• When an alarm is triggered, the operator must immediately stop handling and lower the load onto a safe supporting surface

Note: The indicated safe loads are calculated with a safety factor of 4 for vertical lifting and a safety factor of 2 for horizontal lifting on a smooth, non-porous surface. The dual vacuum protection system does not eliminate the need to follow safe working rules and should not be considered a justification for exceeding the equipment's nominal load.
