machtec SD1000

Configuration

• Standard configuration: 4 pcs. suction pads Ø300 mm

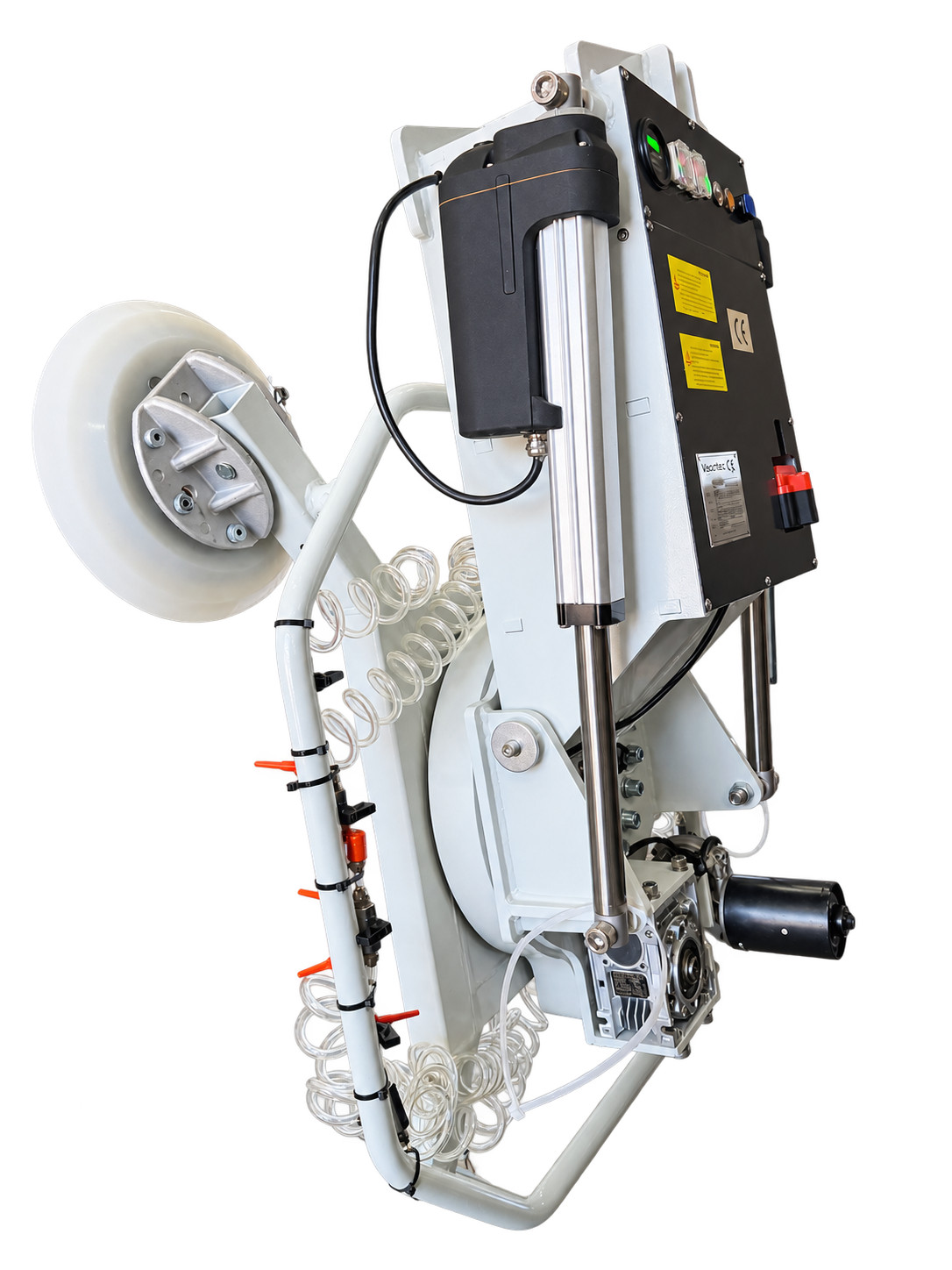

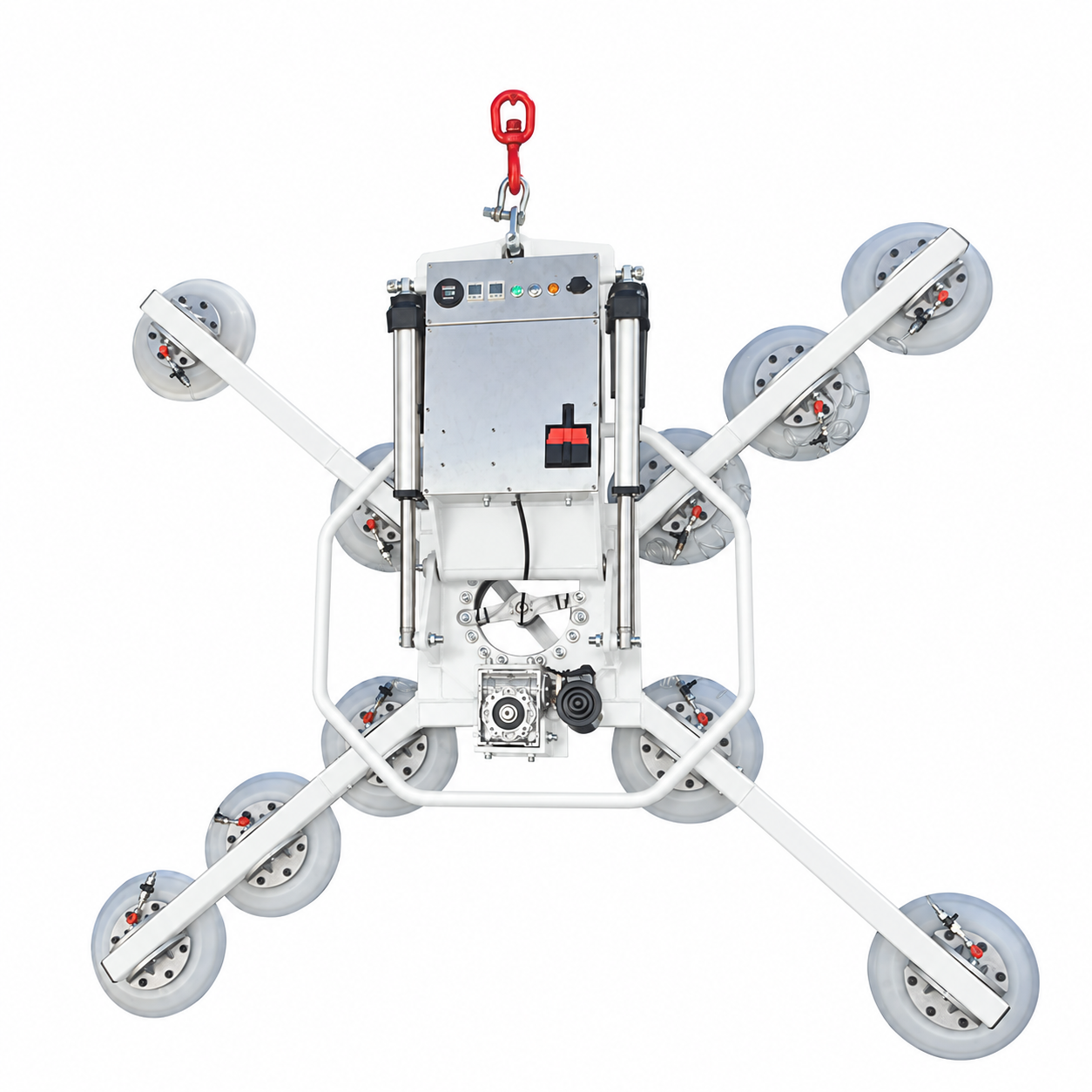

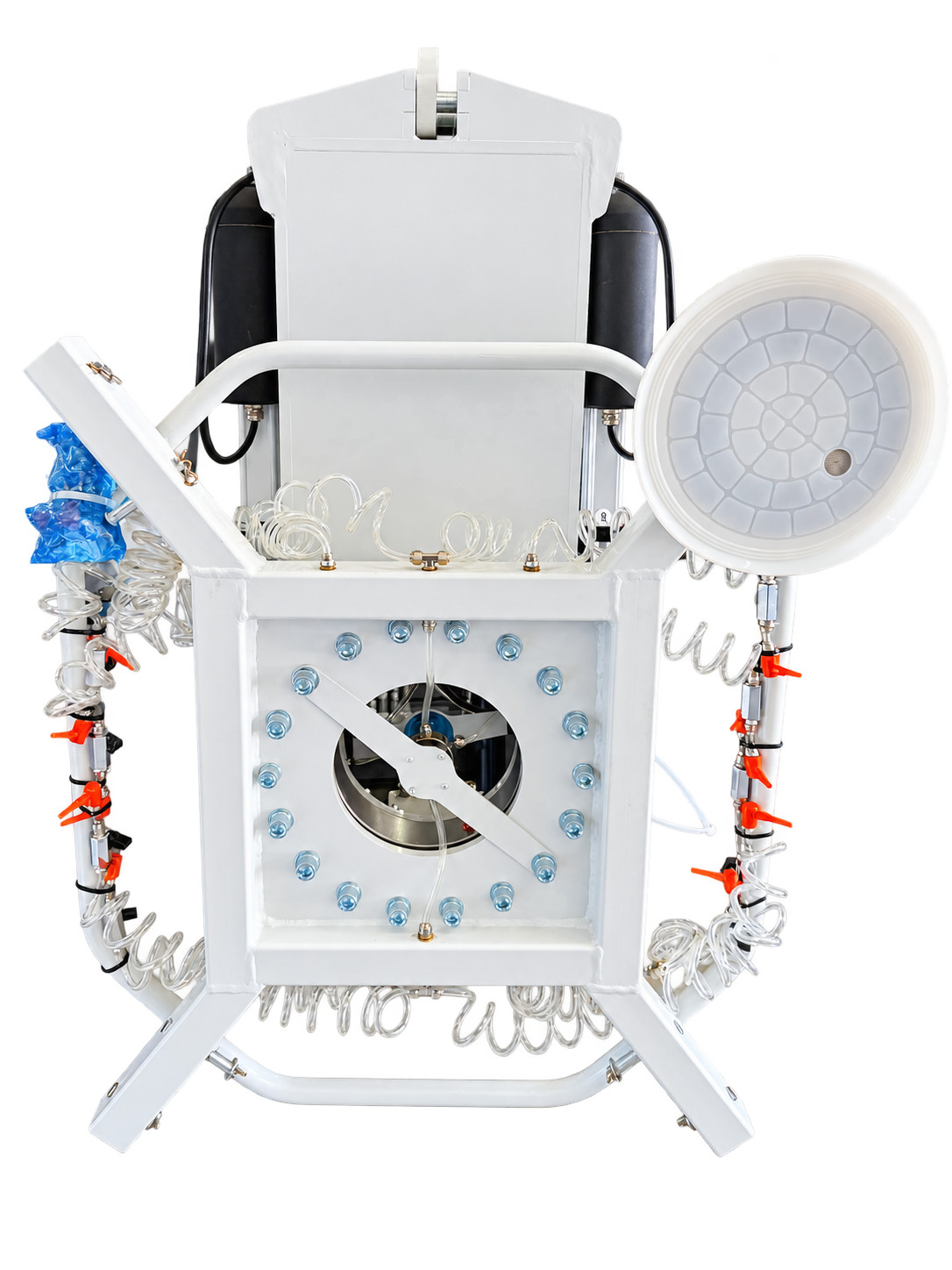

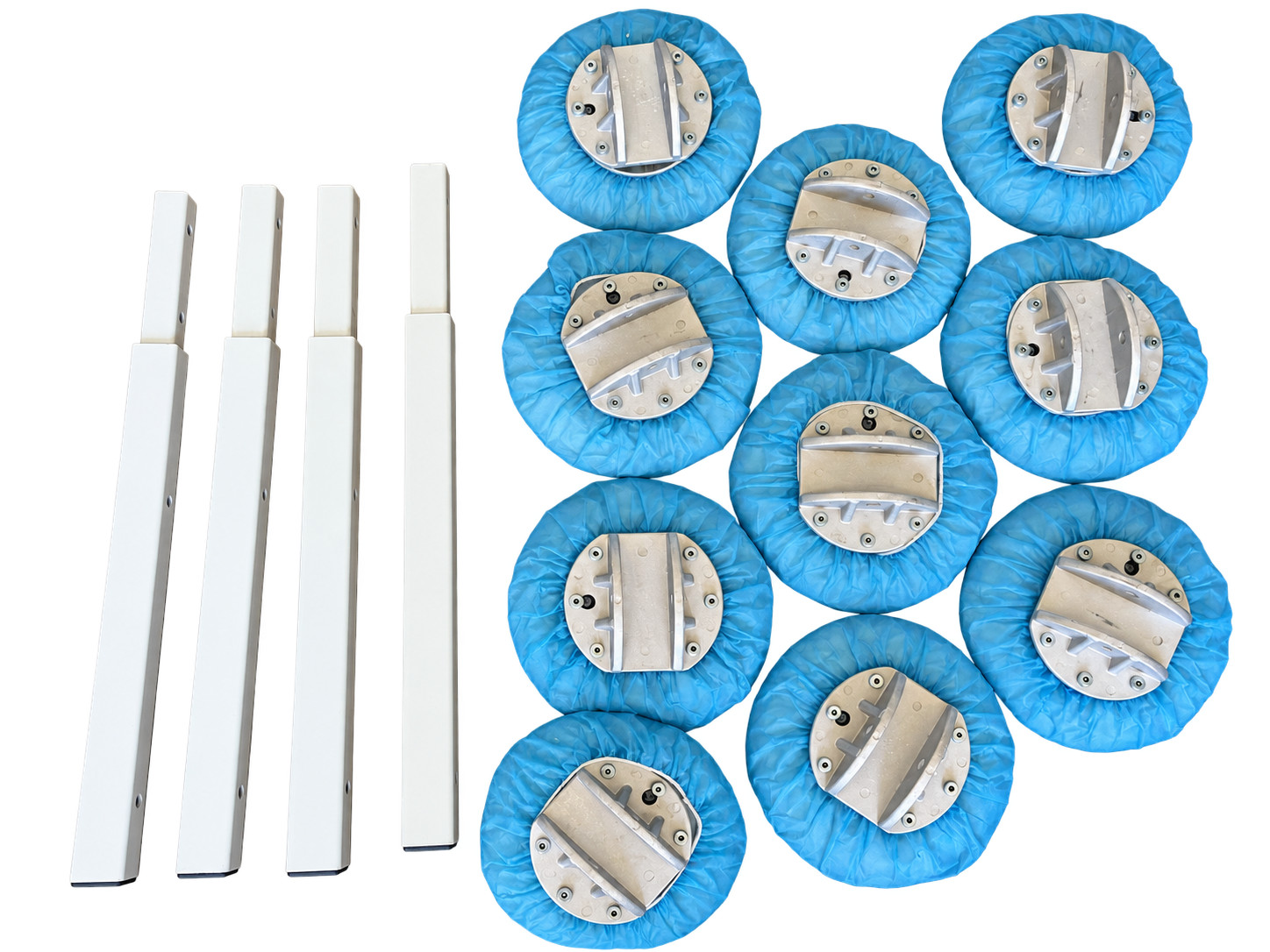

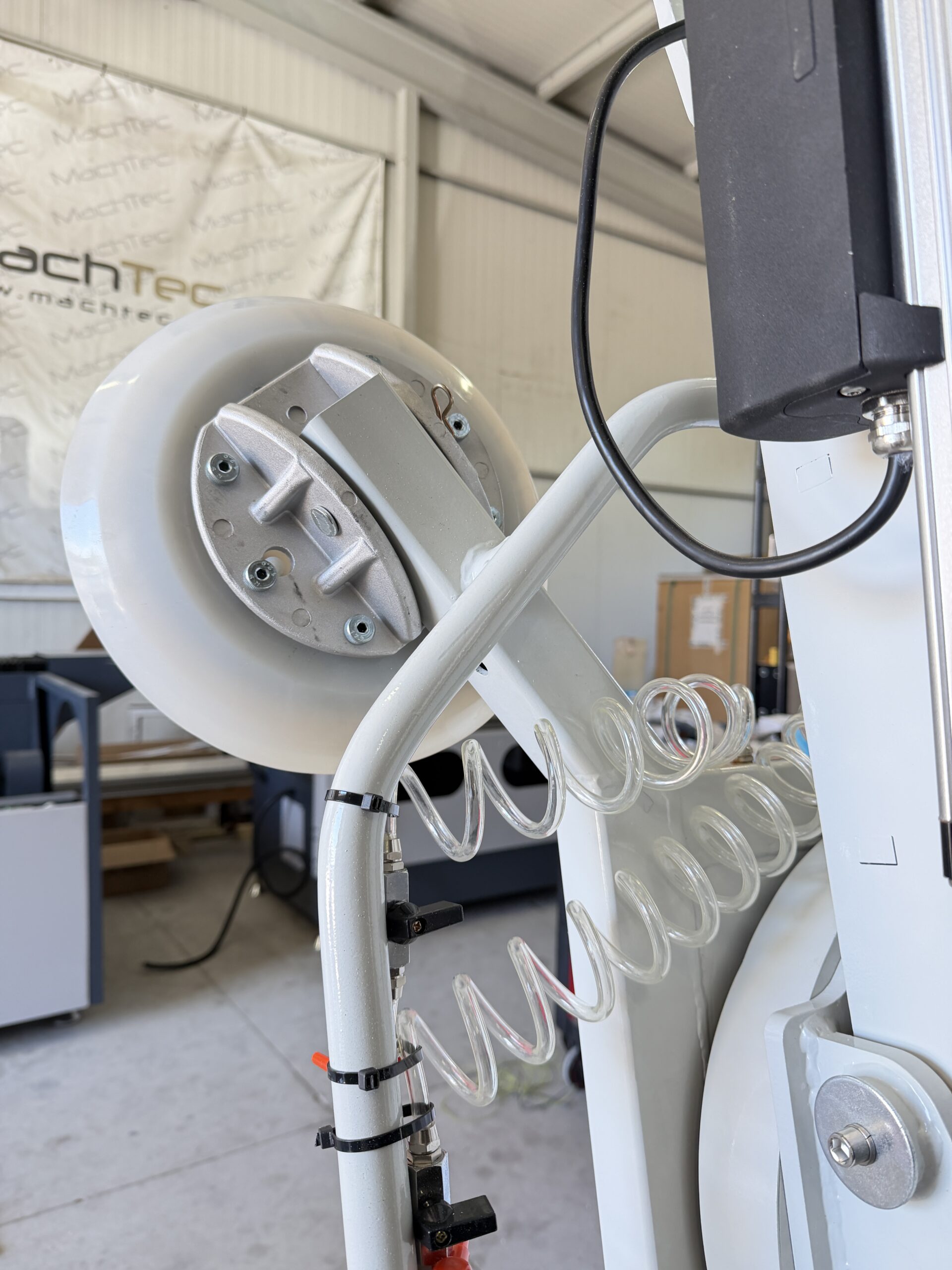

• Expanded configuration: Up to 10 pcs. suction pads Ø300 mm
• Operating vacuum: -60 to -70 kPa
• Safe working load (vertical lifting):
  • 4 suction pads: up to 300 kg
  • 6 suction pads: up to 450 kg
  • 8 suction pads: up to 600 kg
  • 10 suction pads: up to 750 kg
• Safe working load (horizontal lifting):
  • 4 suction pads: up to 400 kg
  • 6 suction pads: up to 600 kg
  • 8 suction pads: up to 800 kg
  • 10 suction pads: up to 1000 kg
• Two independent vacuum circuits
• Continuous individual control and monitoring of each vacuum circuit
• Visual and audible alarm in case of vacuum drop below the preset safety threshold
• Electric load rotation
• Electric load tilting
• Control of vacuum, rotation, and tilting via remote control
• Smooth load positioning during rotation and tilting
• Suitable for working with glass, metal sheets, composite panels, and other non-porous materials
• Flexible suction pad configuration according to workpiece dimensions and geometry

Safe Operation

• The maximum allowable load depends on the size, weight, rigidity, surface condition, and center of gravity of the workpiece
• The load must be evenly distributed among the active suction pads
• The contact surface must be clean, dry, and free from contaminants that could reduce vacuum retention
• The dual vacuum protection system is designed to increase operational safety and early leak detection
• When an alarm is triggered, the operator must immediately stop handling and lower the load onto a safe supporting surface

Note: The indicated safe loads are calculated with a safety factor of 4 for vertical lifting and a safety factor of 2 for horizontal lifting on a smooth, non-porous surface. The dual vacuum protection system does not eliminate the need to follow safe working rules and should not be considered a justification for exceeding the equipment's nominal load.
