ozgenc TURBOCUT 500 PRO
Technical specifications
• Compatible with all joinery and optimisation programmes
• Grooving, drilling, marking on four surfaces on the profile, 3-axis servo motor controlled processing unit that allows all operations such as barrel and arm location to be performed depending on the desired parameters
• Ability to open the barrel slot in oneoperation
• Ability to open the arm location in one operation
• 3-axis gripper arm
• Automatic profile capture feature
• Automatic profile length detection feature
• Ability to capture the profile without wasting time in the gripper arm thanks to the automatic profile length detection feature
• Profile loading in the range of 700 mm - 6500 mm
• Problem diagnosis and service with remote connection
• Windows based control system with 21.5’ screen
• 18 high speed spindles - 1 saw .600 mm

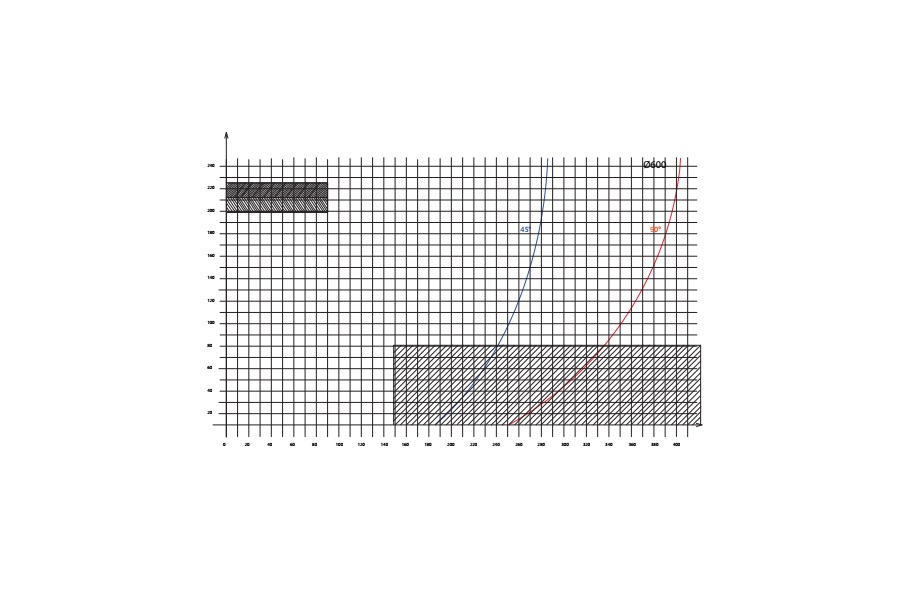

• Top saw (.600 mm) capable of cutting with servo axis control at angles between 35 - 145 degrees
• Fully compatible with CNC screwing center SC 200
